Specifications
  • CPU

Xtensa, dual-core @240 MHz

  • Memory / Storage

SRAM 520 KB + PSRAM 8 MB / Flash 4 MB

  • Protocol

802.11b/g/n

  • Wi-Fi Speed

2.4 GHz: 150 Mbps

  • Ethernet Speed

10/100Mbps

  • Power Input

Micro USB, 5V/1A / PoE, 802.3 af

  • Power Consumption

<0.5W

  • Dimension / Weight

57*57*25 mm / 53.6g

GL-S10 BLE IoT Gateway | PoE Power Supply

£49.90
£49.90 - £49.90
£49.90
£49.90

  • Hassle-Free 2 Year Warranty

  • Free shipping to select countries

  • 30 Day Moneyback

Region:
Notify me
Before You Buy:
  • Cellular router category is restricted in Russia, Belarus, Cuba, Iran, North Korea, Syria, and the Crimean Peninsula due to modem limitations.
  • VAT is include in prices displayed currently for orders to Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, and Sweden.
  • Sales Tax will be charged at checkout for orders shipped to the United States and Canada. Please refer to the price displayed on the checkout page.
Bulk Orders:

For larger orders of more than 30 units, kindly contact our customer service team at cs@gl-inet.com.

Specifications
  • CPU

Xtensa, dual-core @240 MHz

  • Memory / Storage

SRAM 520 KB + PSRAM 8 MB / Flash 4 MB

  • Protocol

802.11b/g/n

  • Wi-Fi Speed

2.4 GHz: 150 Mbps

  • Ethernet Speed

10/100Mbps

  • Power Input

Micro USB, 5V/1A / PoE, 802.3 af

  • Power Consumption

<0.5W

  • Dimension / Weight

57*57*25 mm / 53.6g

GL-S10 BLE IoT Gateway | PoE Power Supply

GL-S10 BLE IoT Gateway | PoE Power Supply

£49.90
£49.90 - £49.90
£49.90
£49.90

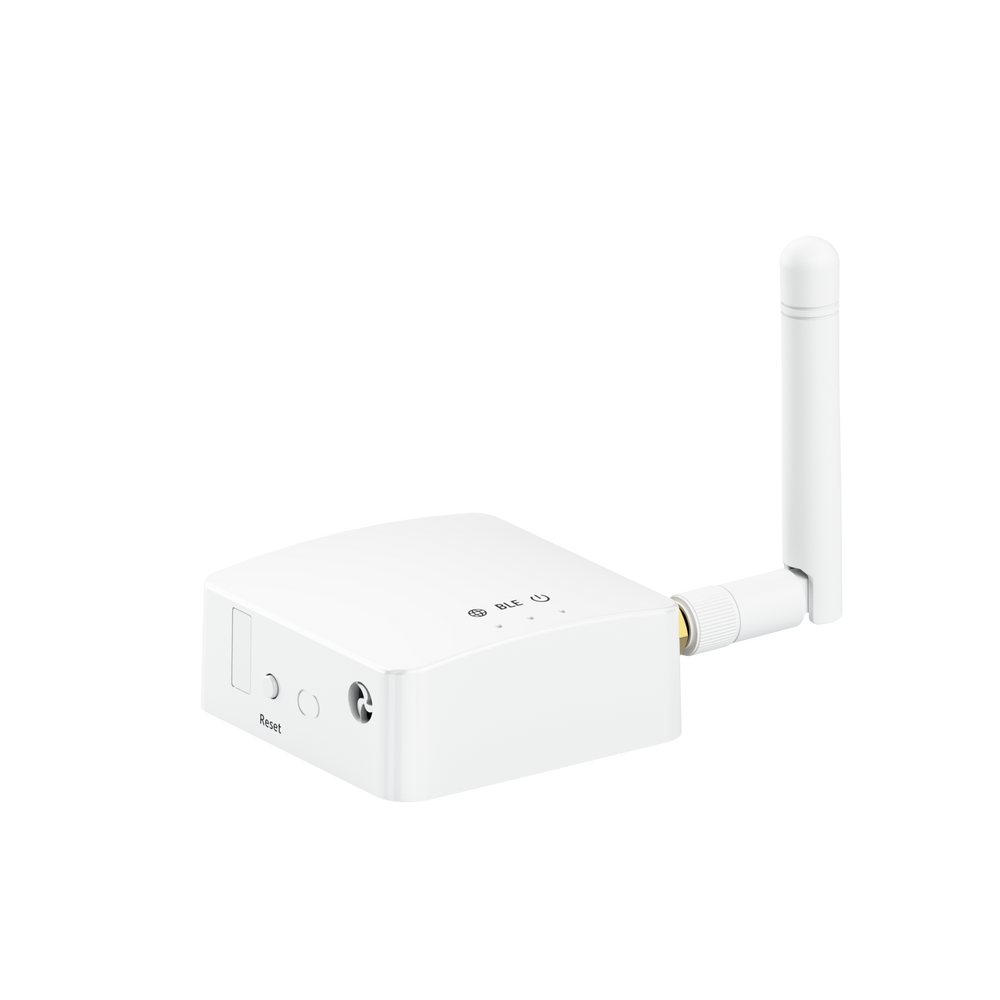

GL-S10 BLE IoT Gateway

MEET GL-S10

Connecting IoT Devices to the Cloud

Contact Sales

BLE IoT Gateway

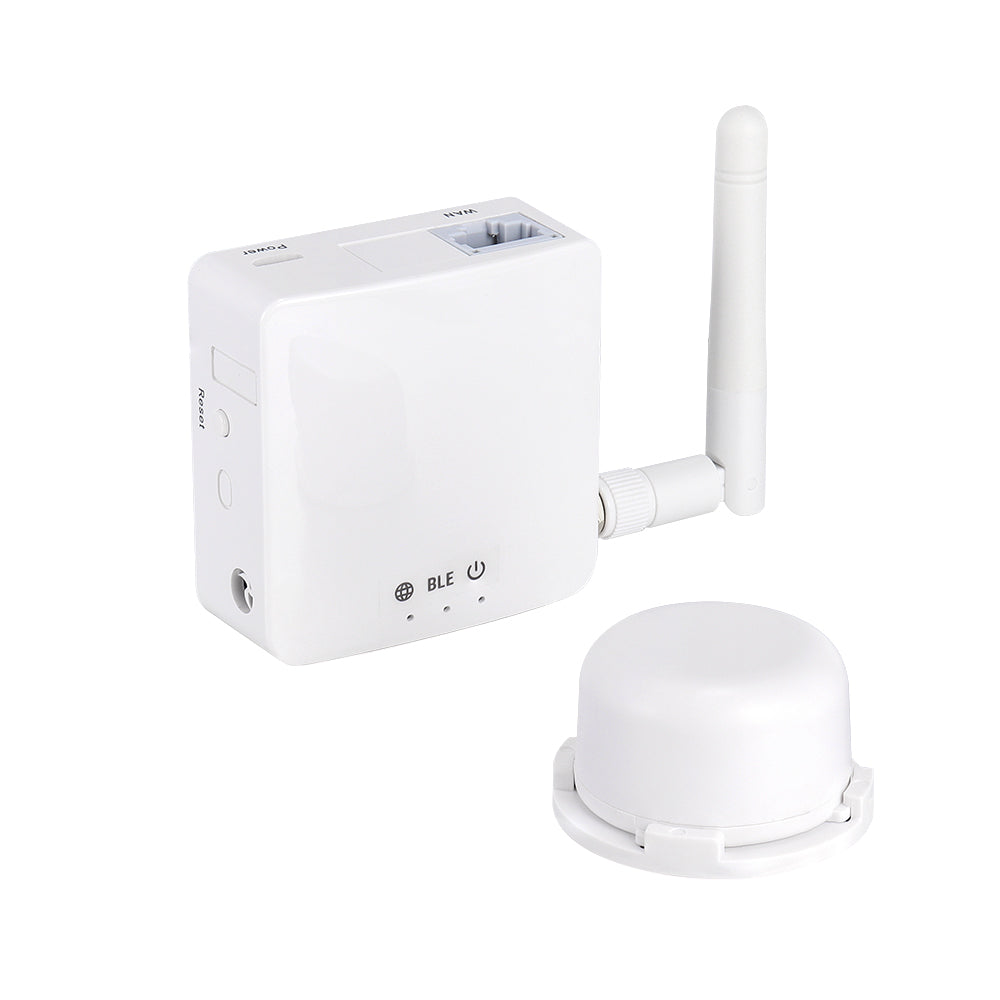

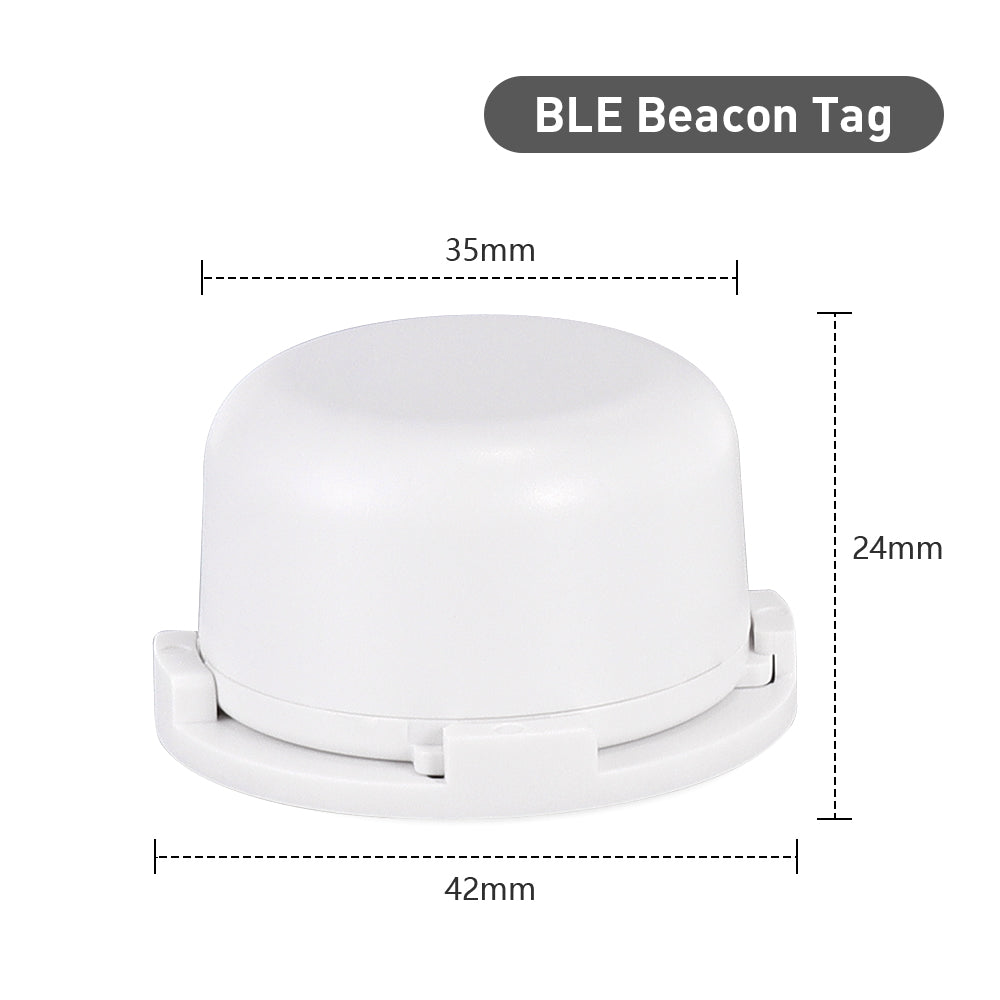

GL-S10 is an ESP32-powered BLE to MQTT IoT gateway. It can be used to facilitate communication between your beacons and servers, such as MQTT broker and AWS IoT. GL-S10 also comes with an optional beacon for testing and a tool app for fast and easy deployment.

Built-in BLE Module

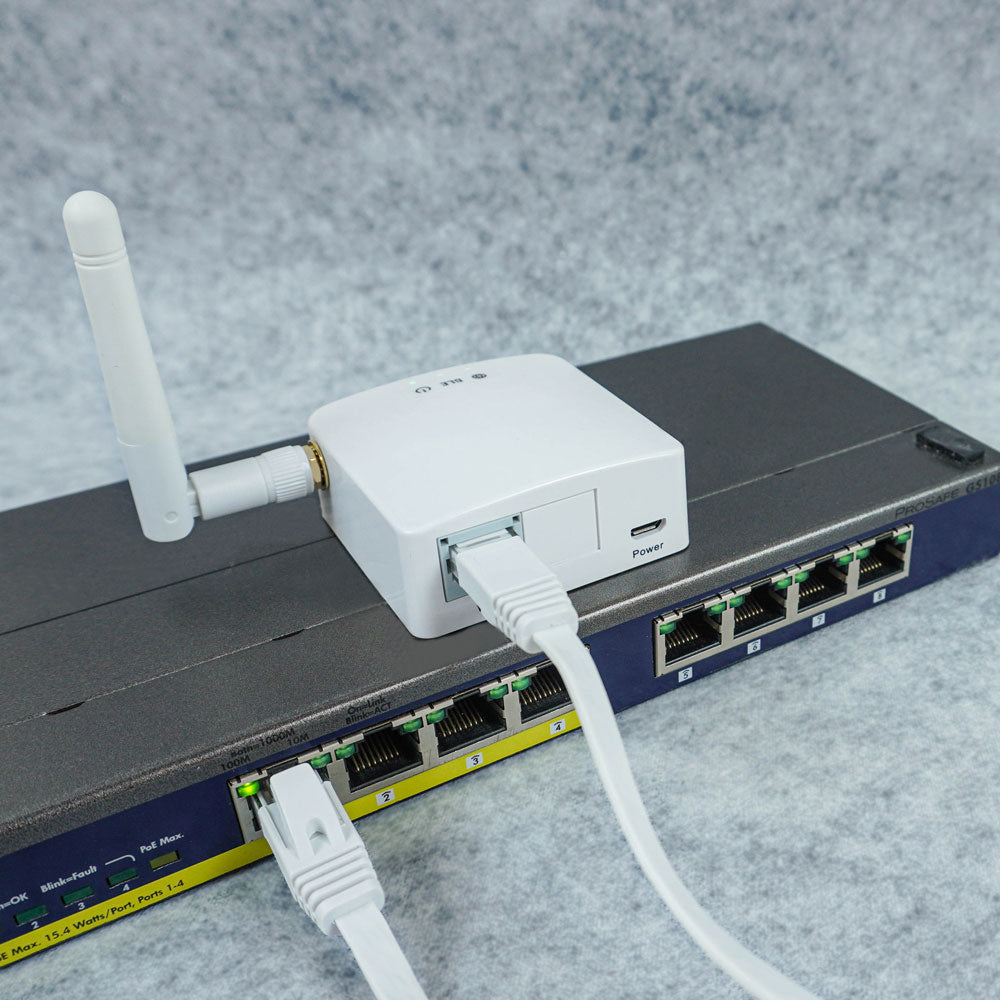

Support MQTT and PoE Power Supply
Built with ESP32

*This product cannot be used as a WiFi Access Point
Learn More View Online Guide

How GL-S10 Works

The GL-S10 is an IoT gateway device that supports BLE and Wi-Fi, providing a cost-effective solution for transmitting BLE broadcast data to the cloud. BLE supports GAP and GATT certification. GL-S10 can use Wi-Fi as a Station to connect to a parent route or can connect to the Internet through a WAN port. It has a built-in standard MQTT Client that can connect to any standard MQTT Servers to forward incoming BLE messages to the cloud server.

How S10 Works

ESP32-D0WD Chipset

ESP32 is a single-chip integrated with 2.4GHz Wi-Fi and BLE. It features ultra-high RF performance, with high stability, versatility, and ultra-low power consumption. GL-S10 is suitable for a wide variety of application scenarios.

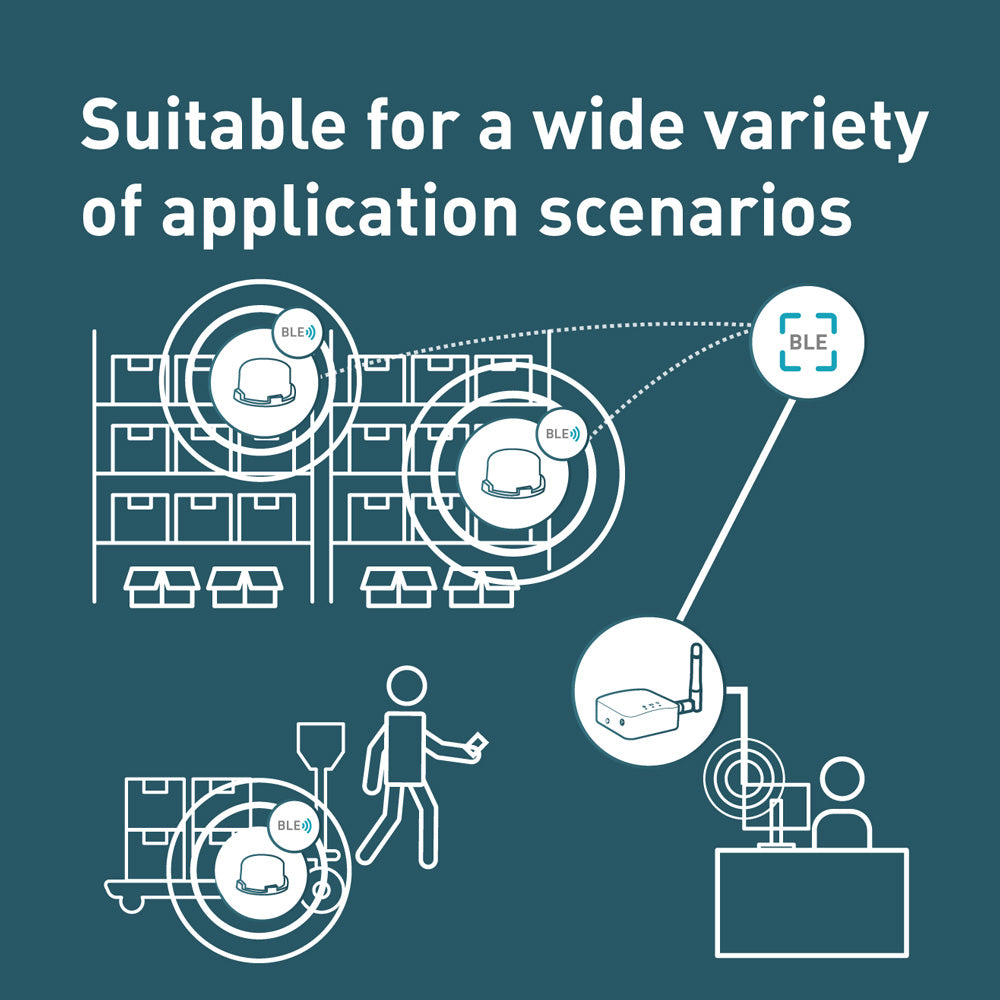

GL-S10 deployed in warehouses

A Minimalist IoT Communication Solution

GL-S10 is a compact BLE IoT gateway that supports Wi-Fi and MQTT protocols. It is designed to be an essential, low power consumption and low-cost transmission device.

Comes with a Tool App

for easy set up & configuration

  • app-store
  • google play

Application Scenarios

Connecting Medical IoT Devices to the Cloud
Healthcare GL-S10
BLE Gateway On Hospital Asset Management Program
Taking Real-time Body Temperature
Smart Agriculture GL-S10
Taking Real-time Body Temperature of 2160 Hogs
Find out more details in our use cases
BLE 4.2
BLE 4.2
AWS IoT
AWS IoT
PoE
PoE
MQTT
MQTT
Real-time Scanning
Real-time Scanning
Wi-Fi 150Mbps
Wi-Fi 150Mbps

Specifications

Interface 1 x Ethernet port
3 x LEDs
1 x Reset Button
CPU ESP32-D0WD
Memory / Storage SRAM 520KB + PSRAM 8MB / NOR Flash 4MB
Protocol IEEE 802.11 b/g/n
Wi-Fi Speed 150Mbps (2.4GHz)
Ethernet Speed 1 x 10/100Mbps
LEDs Power / BLE / Network
BLE V4.2, BLE
Power Input Micro USB, 5V/1A or PoE Power Input
Power Consumption Normal Operating Consumption: <0.5W / Operating at Full Capacity: <1.5W
Operating Temperature 0~40°C (32~104°F)
Storage Temperature -20~70°C (-4~158°F)
Dimension / Weight 57 x 57 x 25mm / 53.6g
Tools & Downloadables Datasheet | App | Product video | Tutorials | Media Kit
