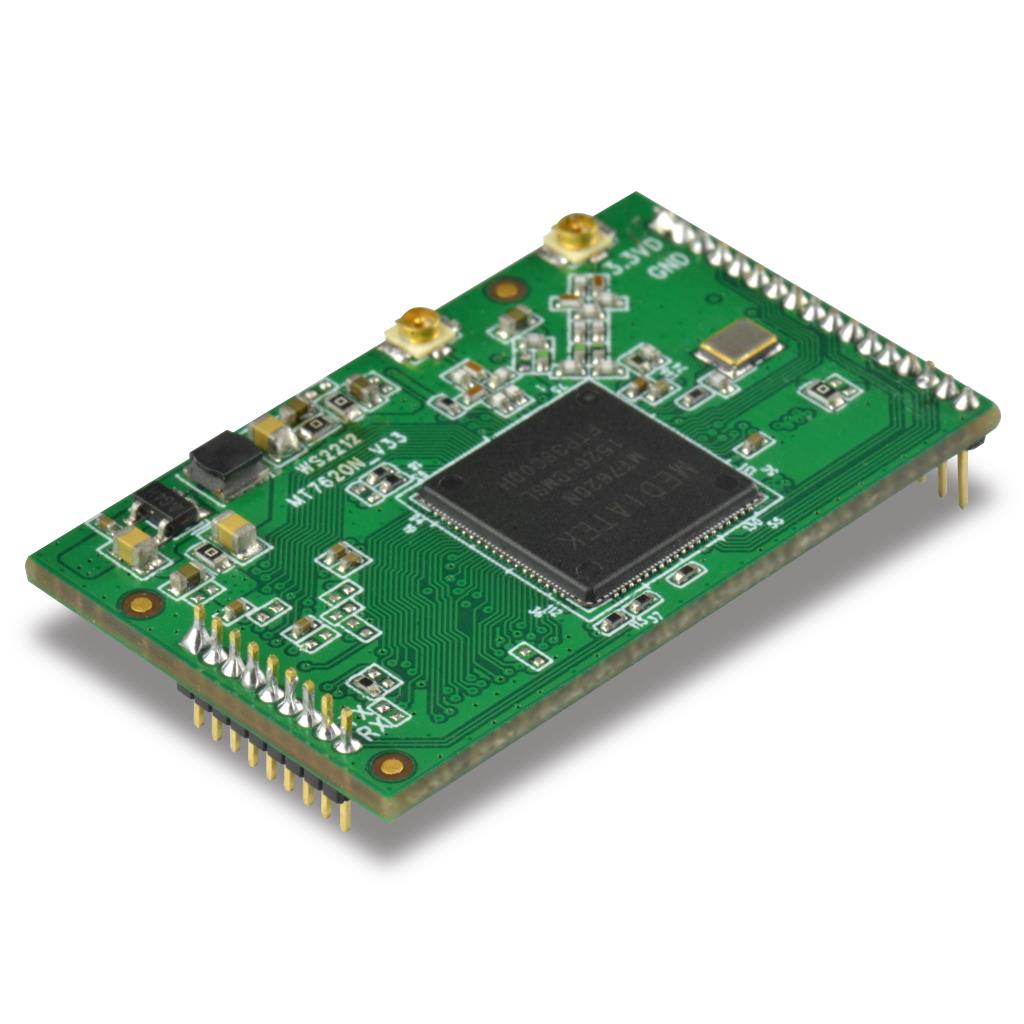

High power Wi-Fi module
- Powered by MTK 7620N
- Strong signal max 20dBm output
- 300Mbps
- Complete interfaces
- 2.0mm headers
GL-M7620N high power Wi-Fi module can be widely used in Wi-Fi controller for R/C cars and robots, Wi-Fi scale, Wi-Fi speakers, IP cameras, Wi-Fi serial converter or other IoT applications.
.jpg)
| CPU | MTK 7620N @580Mhz |
| Memory/Storage | DDR2 64MB/ FLASH 16MB |
| Interfaces | 1 WAN/LAN, 1 USB, I2C, UART, GPIO, LED, RESET |
| Max Tx Power | 20dBm |
| Protocol | IEEE 802.11b/g/n |
| WAN/LAN | 10/100Mbps |
| Transmission rate | 300Mbps |
| Antenna | IPEX interface External Antenna |
| Power input | 5V/1A |
| Power consumption | ≤ 750mW |
| Dimension, Weight | 41*25*12mm, 10g |
Downloads will be available soon
-
