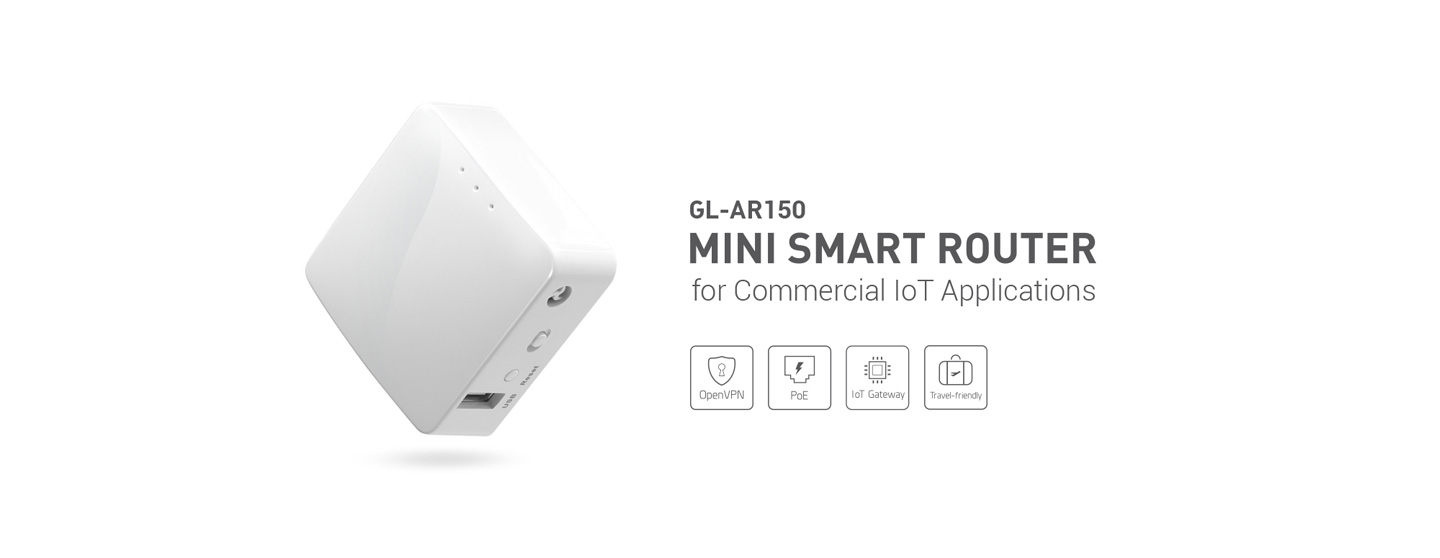

GL-AR150

  • Powered by Atheros 9331 SoC, 400MHz CPU
  • 150Mbps high speed
  • 16MB Flash, 64M RAM
  • Stable performance
  • Low power consumption
  • Small, light, easy to use
  • OpenWrt pre-installed
  • 4 GPIOs for IoT development
  • External antenna optional support
  • Optional POE support
CPU QCA9331, 400MHz
Memory DDRII 64MB
Storage 16MB Flash
Interfaces 1 WAN, 1 LAN, 1 USB2.0, 1 micro USB (power), 1 Reset button, UART
Frequency 2.4GHz
Transmission rate 150Mbps
Max Tx Power 18dBm
Protocol 802.11 b/g/n
External Storage support FAT32/EXFAT/EXT4/EXT3/EXT2/NTFS
Webcam support MJPG, YUV
DIY features UART, GPIO, 3.3V & 5V power port
External antenna support Yes
PoE support Yes
Power input 5V/1A
Power consumption <1.5W
Dimension, Weight 58*58*25mm, 39g

Download AR150 Firmware can be found at: http://download.gl-inet.com/firmware/ar150/

AR150 User Guide can be found at: minirouter_user-guide_AR150_20170629

PCB Pinout: AR150 PCB Pinout

Note: In the PCB pinout, the pin marked as 5V in GPIO headers is actually connected to GND. To make it work as 5V, move Resistor R26 to R27.

GL-AR150

with internal antenna

Shop now

GL-AR150 (POE)

with internal antenna

Shop now

GL-AR150-Ext-2

with one 2dbi external antenna

Shop now

GL-AR150-Ext-2 (POE)

with internal antenna

Shop now
